Remove variator without special clutch tool?

Post by RRocket »

My sliders came in today! Just wondering if anyone has removed the variator without the special clutch holding tool? I'm a manufacturing/auto engineer and work in a tool shop so I could make one if need be.

But if I don't have to, that would be even better!
User avatar
homie
Prestige
Prestige
Posts: 6103
Joined: Sat Sep 06, 2014 12:49 pm
Year: 2015 PCX150
Color: Pearl White
Location: FloridaLand

Re: Remove variator without special clutch tool?

Post by homie »

You don't need the special tool, your impact wrench will remove the nut with ease. However one should brace it somehow to get a proper torque when done. I didn't bother to torque mine though, I just impact wrenched it back. My guess is you don't want a very serious impact wrench, I could look up the torque if you don't have a SM. At the end of my video here you see the one I used and it was more than enough.
https://www.youtube.com/watch?v=-NRc9g3Dasw
User avatar
honkerman
Frequent Poster
Frequent Poster
Posts: 1220
Joined: Sat Aug 08, 2015 7:20 pm
Year: 2013
Color: Black
Location: Pennsylvania, USA

Re: Remove variator without special clutch tool?

Post by honkerman »

I was gonna say... "Clutch tool?" I've never used a clutch tool on a CVT in my life.
Paul Smith
scootinfool.blogspot.com
Scootin' Fool on YouTube
Lancaster County Pennsylvania
2013 Honda PCX-150 (Angry Hornet) - Leo Vince Corsa Exhaust, NCY Variator (13g Rollers), NCY shocks, Givi D322S windscreen, NCY drum brake actuator arm, Denali Soundbomb mini horn
2006 Piaggio Beverly 250 (Rosa)
User avatar
RRocket
New Member
New Member
Posts: 41
Joined: Fri Jan 23, 2015 12:35 am
Location: Canada

Re: Remove variator without special clutch tool?

Post by RRocket »

Yes, I have an impact wrench. But the variator will just spin. The clutch tool holds the variator. What are you using to brace it so it doesn't just spin?
User avatar
homie
Prestige
Prestige
Posts: 6103
Joined: Sat Sep 06, 2014 12:49 pm
Year: 2015 PCX150
Color: Pearl White
Location: FloridaLand

Re: Remove variator without special clutch tool?

Post by homie »

RRocket wrote:Yes, I have an impact wrench. But the variator will just spin. The clutch tool holds the variator. What are you using to brace it so it doesn't just spin?
Nothing, just the resistance of the engine compression and or belt. Here watch this guy but for God's sake don't start it up and run open belts whilst having hoody strings hanging from your neck. What an accident waiting to happen.

btw I did not use lock tight on reassembly to avoid problems during the next roller swap and I did not see any on it from the factory. Don't tighten it back on the belt with power tool, do what he does to be sure its moving free.

User avatar
waspmike
Regular User
Regular User
Posts: 499
Joined: Sun Nov 13, 2011 9:37 pm
Location: Bangkok

Re: Remove variator without special clutch tool?

Post by waspmike »

I made one of these.


I used 20mm x 5mm steel because that is what had. One piece is aprox 500mm long the other about 220mm again just what was lying around. The bolts are 6mm x 30mm and 6 x 25 so as to make them the same length and the 30mm one has two nuts on it ... if you make one you will see?

Surf for DIY variator tool as there are many ways to skin a cat.

I would advise against using a rattle gun, PCX maybe OK but on some small scooters the rattle gun shifts the crank alignment.
User avatar
RRocket
New Member
New Member
Posts: 41
Joined: Fri Jan 23, 2015 12:35 am
Location: Canada

Re: Remove variator without special clutch tool?

Post by RRocket »

homie wrote: Nothing, just the resistance of the engine compression and or belt. Here watch this guy but for God's sake don't start it up and run open belts whilst having hoody strings hanging from your neck. What an accident waiting to happen.

btw I did not use lock tight on reassembly to avoid problems during the next roller swap and I did not see any on it from the factory. Don't tighten it back on the belt with power tool, do what he does to be sure its moving free.
I can turn it with my hand LOL There is absolutely no resistance of any type. A teeny 150 single doesn't have that much compression to offer much in the way of resistance.
User avatar
Oyabun
Frequent Poster
Frequent Poster
Posts: 640
Joined: Sun Jun 28, 2015 4:24 pm
Year: `12,`15,`19
Color: black&black
Location: Europe

Re: Remove variator without special clutch tool?

Post by Oyabun »

I cannot imagine removing the drive face without holding it down (if one has no impact driver like myself).
However it is fairly easy to make one. Here's mine.

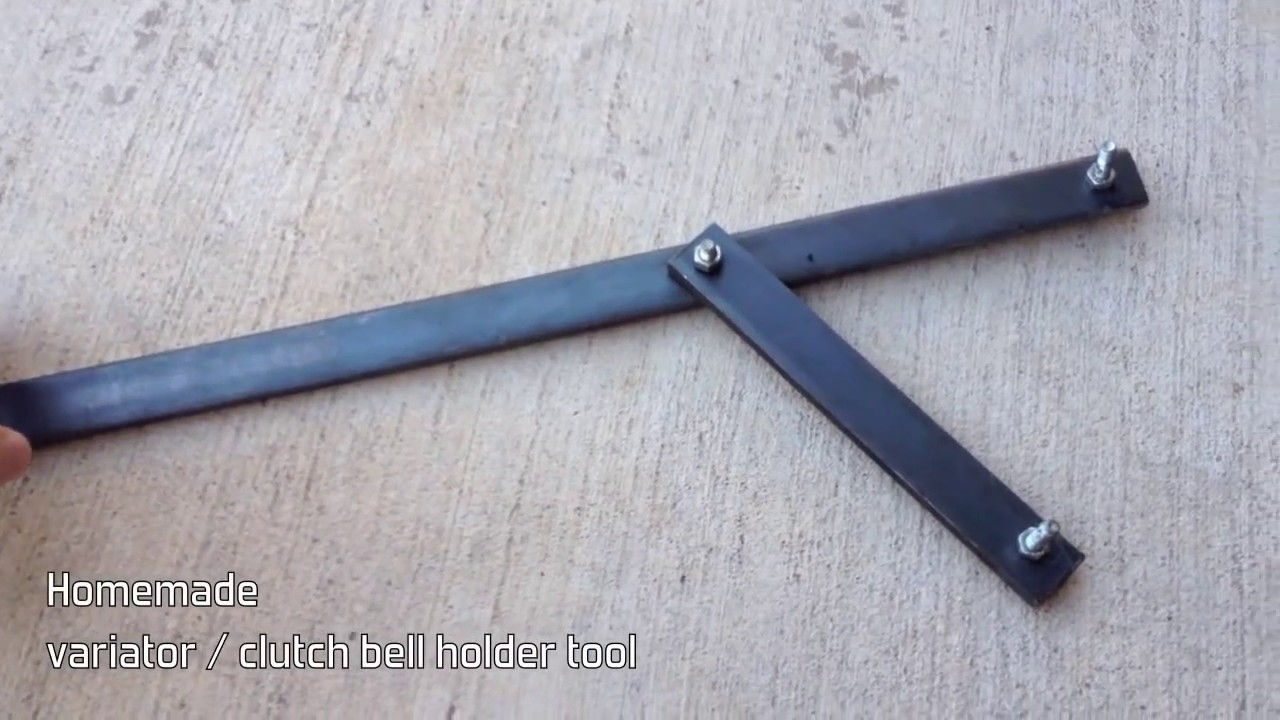

Drive face holder tool
Drive face holder tool
Drive face tool.jpg (139.57 KiB) Viewed 6336 times
It took me like 12 minutes to make it - including looking for the parts.
The bolts are M6x35 with matching self tapping nuts.
Jge64
Frequent Poster
Frequent Poster
Posts: 1830
Joined: Wed Jun 10, 2015 4:30 pm
Year: 18 300 xmax
Color: White
Location: Fort lauderdale
Contact:

Re: Remove variator without special clutch tool?

Post by Jge64 »

I knew long term I was gonna mess with diff slider weights, so I just bought the tool on AMZN, it also works on my outboard motors....

http://www.amazon.com/gp/product/B000HS ... ge_o05_s00
Glen
‘15 PCX build thread here:
https://www.hondapcx.org/viewtopic.php?f=2&t=4640
Current: ‘18 XMAX 300 & ‘22 NAVI
User avatar
sendler2112
Forum Benefactor
Forum Benefactor
Posts: 1412
Joined: Thu Jul 26, 2012 3:27 pm
Year: 2013 PCX150
Location: Syracuse, NY, USA 13045

Re: Remove variator without special clutch tool?

Post by sendler2112 »

As he said....The force from the the impact is so sudden that it will remove or reinstall the nut without anything holding the pullies.
User avatar
cessna151
Regular User
Regular User
Posts: 196
Joined: Sun Dec 09, 2012 5:15 pm
Location: Indiana, USA

Re: Remove variator without special clutch tool?

Post by cessna151 »

waspmike wrote:I made one of these.

I made one too.

Less than $5 in parts from the hardware store.
iceman
Forum Benefactor
Forum Benefactor
Posts: 2860
Joined: Sun Dec 29, 2013 11:43 pm
Year: 2014 125 (LED)
Color: White
Location: London, England

Re: Remove variator without special clutch tool?

Post by iceman »

MAde one out of 5mm aluminium strips - the strips started to bend and one of the 6mm bolts did bend about 30 degrees (placed in the two holes). I can understand the aluminium being too soft, steel or iron is stronger, but the bolt bending! (cannot straigten to remove now, but no bother as the aluminium strips are no good)
User avatar
Mel46
Forum Benefactor
Forum Benefactor
Posts: 6963
Joined: Tue Nov 13, 2012 5:13 pm
Year: 2013
Color: red PCX
Location: Dallas, Ga USA

Re: Remove variator without special clutch tool?

Post by Mel46 »

Someone else on this forum used wood to make one. That should be easy enough, but I would go with metal, sort of like this one. Use bolts that fit somewhat snug in the holes, but not too snug. You shouldn't have to force them.

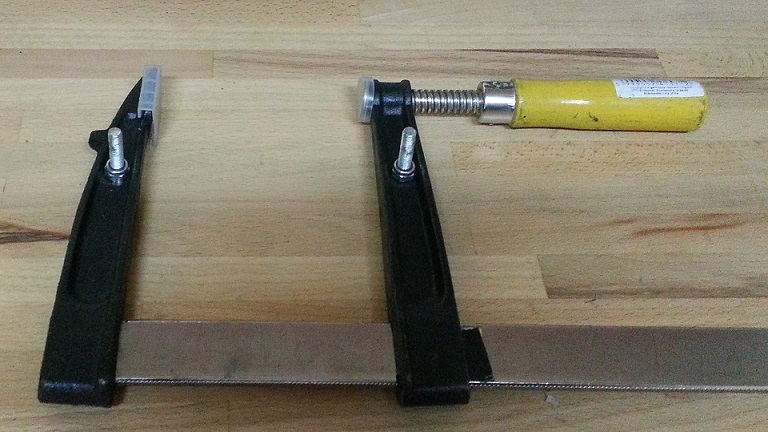

Homemade clutch holding tool.jpg
Homemade clutch holding tool.jpg (165.14 KiB) Viewed 3250 times
Currently own:
Red 2013 Honda PCX150

Givi tall windshield & tailbox - Lots of extra lights
Custom seat from Thailand - Bad Boy Airhorn
Takegawa Lowering Shocks - Michelin City Grip Tires
Headlight assy upgraded to LEDs w/HS5 main bulbs
NCY variator, drive face, and rollers
iceman
Forum Benefactor
Forum Benefactor
Posts: 2860
Joined: Sun Dec 29, 2013 11:43 pm
Year: 2014 125 (LED)
Color: White
Location: London, England

Re: Remove variator without special clutch tool?

Post by iceman »

Mel, that's the type that I made, but 5mm aluminium. Even if made out of stronger metal, the fact is the 6mm bolts started to bend, one has most of it's length bent at 30 degree's - so probably happen again.
User avatar
Mel46
Forum Benefactor
Forum Benefactor
Posts: 6963
Joined: Tue Nov 13, 2012 5:13 pm
Year: 2013
Color: red PCX
Location: Dallas, Ga USA

Re: Remove variator without special clutch tool?

Post by Mel46 »

Hmmm...interesting. how about those bolts that have no thread halfway down from the head? You could cut the head off and have a more solid post after screwing it in. The thread is the weakest part of the bolt.
Currently own:
Red 2013 Honda PCX150

Givi tall windshield & tailbox - Lots of extra lights
Custom seat from Thailand - Bad Boy Airhorn
Takegawa Lowering Shocks - Michelin City Grip Tires
Headlight assy upgraded to LEDs w/HS5 main bulbs
NCY variator, drive face, and rollers
User avatar
gn2
Forum Benefactor
Forum Benefactor
Posts: 7767
Joined: Tue Dec 06, 2011 7:54 pm
Year: None
Location: NE Scotland

Re: Remove variator without special clutch tool?

Post by gn2 »

There's two tools required for CVT dismantling.

1: Front pulley, a holder for the drive face which is two pins that engage in holes on the drive face, these tools are usually Y shaped, but I just drilled a piece of scrap plywood and added bolts to suit.

2: Rear pulley, a holder for the clutch drum, a large-ish strap wrench is ideal, I got one from the interweb for a few quid.
Four decades on two wheels has taught me nothing, all advice given is guaranteed to be wrong
