cigarette lighter plug

Having trouble? Need more info on something mechanical? Ask here!

Moderator: Modsquad

chet
New Member
New Member
Posts: 33
Joined: Sat Aug 29, 2015 8:00 pm
Year: 2013
Color: red

cigarette lighter plug

Post by chet »

i am curious if my 2013 would handle a cigarette lighter plug connected to the battery and charge my cell phone while riding

Chet
j.d.b.
Forum Benefactor
Forum Benefactor
Posts: 255
Joined: Sat Jul 04, 2015 4:59 pm
Year: 2013
Color: red
Location: Michigan

Re: cigarette lighter plug

Post by j.d.b. »

I don't see why not. If you have a manual you should be able to find the ignition feed you need.
iceman
Forum Benefactor
Forum Benefactor
Posts: 2857
Joined: Sun Dec 29, 2013 11:43 pm
Year: 2014 125 (LED)
Color: White
Location: London, England

Re: cigarette lighter plug

Post by iceman »

Best add a fuse (new PCX have a 5A fuse) in the line for good measure - just in case. You can get USB style dual outlets for fitting to bikes from ebay - a nice small charging port (faceplate) without the need for cigarette lighter and adapters, should that be more convenient.
User avatar
honkerman
Frequent Poster
Frequent Poster
Posts: 1220
Joined: Sat Aug 08, 2015 7:20 pm
Year: 2013
Color: Black
Location: Pennsylvania, USA

Re: cigarette lighter plug

Post by honkerman »

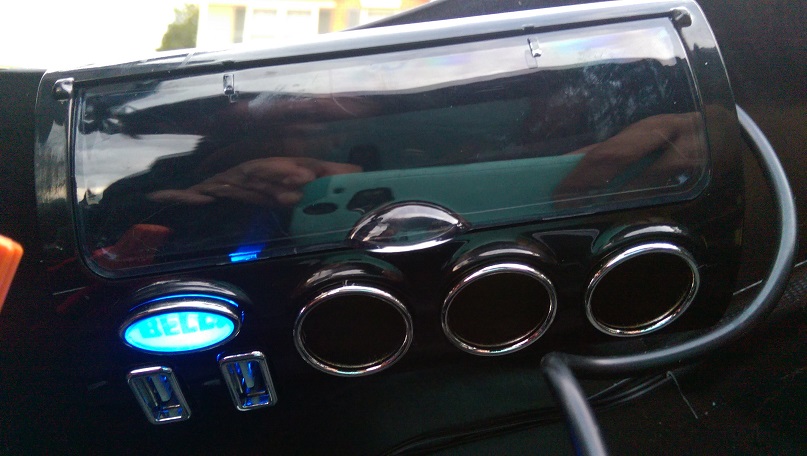

Yes. Use an inline fuse. I got this on clearance for $8 at K-mart. It's a five plug requiring a 5 amp fuse. Works great. It came with a lighter plug which I snipped off, then attached the wires in to the battery. Be careful to use connectors that don't require you to unscrew the nuts on the battery the whole way. But yeah, I used mine the whole way from Pennsylvania to Massachusetts and back again.Works fantastic.
Attachments
Paul Smith
scootinfool.blogspot.com
Scootin' Fool on YouTube
Lancaster County Pennsylvania
2013 Honda PCX-150 (Angry Hornet) - Leo Vince Corsa Exhaust, NCY Variator (13g Rollers), NCY shocks, Givi D322S windscreen, NCY drum brake actuator arm, Denali Soundbomb mini horn
2006 Piaggio Beverly 250 (Rosa)
User avatar
Oyabun
Frequent Poster
Frequent Poster
Posts: 640
Joined: Sun Jun 28, 2015 4:24 pm
Year: `12,`15,`19
Color: black&black
Location: Europe

Re: cigarette lighter plug

Post by Oyabun »

I've installed the dual USB as mentioned by Iceman on my 2012 model. Placed it deep down in the "glovebox" so I can connect fairly long chargers also and sfill close the door. Works like a charm.
As I cbanged my side markers and rear light from the 5w bulbs to LEDs which consume about 1,5w I have connected the USB charger to that swithced circuit and still have a fair margin left with the original fuse.
For the istall you anyway have to remove quite a bit of the tupperware as you can only drill the hole for the socket from the back of the removed glovebox assy. - so connecting the wires to headlight cabling is easy. Removing the steering cover is a bit@ch, make sure you check pictures, videos to educate yerself before attempting to do it. Everything else is a piece of cake.
