Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/2015
Moderator: Modsquad
-
- Regular User
- Posts: 89
- Joined: Sun Jan 29, 2012 2:49 am
Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/2015
Hi!
We have now for sale Genuine Kit Cylinder Honda PCX 150cc v3 2014/2015
for the owners of Honda PCX 125 v3 2014/2015 would like change to 150cc
Price is only 99 euros!
With the discount code and the shipping cost by Air Mail is less than 119 Euros for Europe
and less than 124 Euros for USA/CANADA
http://www.powerbypcx.com/achat-kit-cyl ... 00022.html
All the parts are from Honda factory and from the PCX 150 model 2014/2015

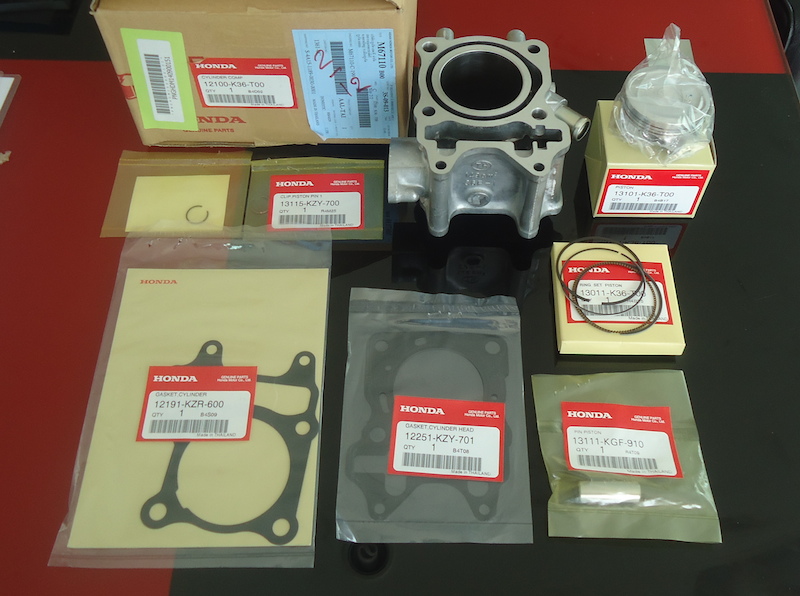

The Kit includes:

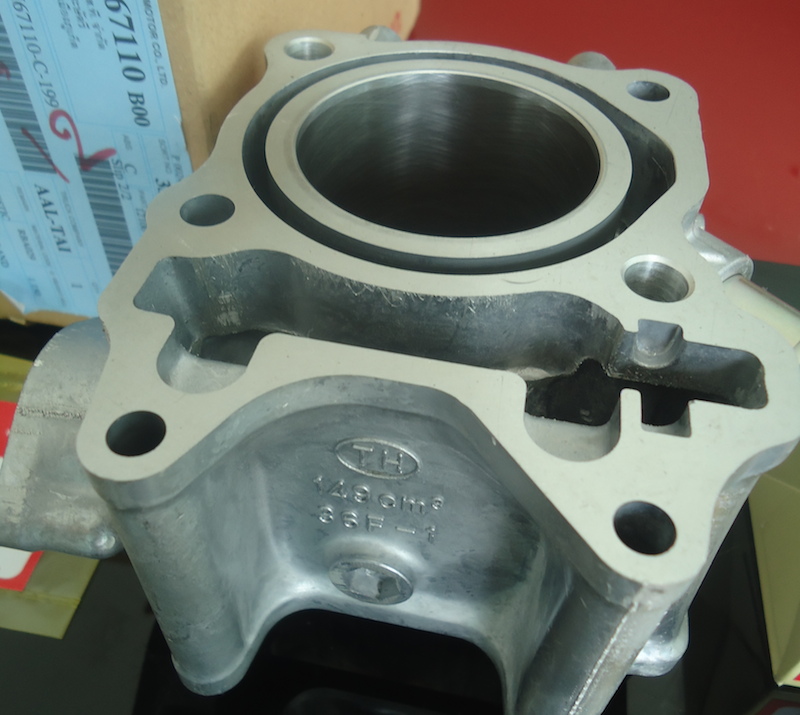

Cylinder 149cm3 ref: 12100-K36-TOO
Piston ref: 13101-K36-T00
Ring set piston ref: 13011-K36-T00
Pin Piston ref: 13111-KGF-910
2 clips piston pin ref: 13115-KZY-700
Gasket cylinder Head ref: 12251-KZY-701
Gasket cylinder ref: 12191-KZR-600
We have now for sale Genuine Kit Cylinder Honda PCX 150cc v3 2014/2015
for the owners of Honda PCX 125 v3 2014/2015 would like change to 150cc
Price is only 99 euros!
With the discount code and the shipping cost by Air Mail is less than 119 Euros for Europe
and less than 124 Euros for USA/CANADA
http://www.powerbypcx.com/achat-kit-cyl ... 00022.html
All the parts are from Honda factory and from the PCX 150 model 2014/2015
The Kit includes:
Cylinder 149cm3 ref: 12100-K36-TOO
Piston ref: 13101-K36-T00
Ring set piston ref: 13011-K36-T00
Pin Piston ref: 13111-KGF-910
2 clips piston pin ref: 13115-KZY-700
Gasket cylinder Head ref: 12251-KZY-701
Gasket cylinder ref: 12191-KZR-600
- sendler2112
- Forum Benefactor
- Posts: 1412
- Joined: Thu Jul 26, 2012 3:27 pm
- Year: 2013 PCX150
- Location: Syracuse, NY, USA 13045
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
Does this run well without a remap?
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
Should have no drama..worst case is just get a bigger injector.sendler2112 wrote:Does this run well without a remap?
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
That's what I'm talking about!!
And about the cost to install everything? Anyone know's? Or time...?
If I don't upgrade I think it might give a litle extra boost no?
And about the cost to install everything? Anyone know's? Or time...?
If I don't upgrade I think it might give a litle extra boost no?
- ScooterMan
- Regular User
- Posts: 392
- Joined: Sun Dec 01, 2013 12:51 am
- Location: San Diego, CA
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
Off the top of my head, all these parts should cost roughly $150 less just buying these in the states for U.S. buyers. You could prob get these all shipped to your door for $125 or so using an online discount parts dealer.
2015 PCX 150 (White)[/color]
Top speed 76mph(2015) 79mph (2013)with NCY variator & Drive Face
Top speed 76mph(2015) 79mph (2013)with NCY variator & Drive Face
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
You can't install 150 kit on first gen Pcx, because the piston pin is 13mm where as the 150 model is 14mm in size. This is only good for esp 125 models.nribeiro wrote:That's what I'm talking about!!
And about the cost to install everything? Anyone know's? Or time...?
If I don't upgrade I think it might give a litle extra boost no?
2. You really need to upgrade the camshaft as well to get some decent gain from extra 25cc upgrade..
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
Mine is ESP so its good for this right? What camshaft do you recomend?
-
- Regular User
- Posts: 89
- Joined: Sun Jan 29, 2012 2:49 am
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
That why we say this kit is only for the PCX 125 v3Pcxdemon wrote:You can't install 150 kit on first gen Pcx, because the piston pin is 13mm where as the 150 model is 14mm in size. This is only good for esp 125 models.nribeiro wrote:That's what I'm talking about!!
And about the cost to install everything? Anyone know's? Or time...?
If I don't upgrade I think it might give a litle extra boost no?
2. You really need to upgrade the camshaft as well to get some decent gain from extra 25cc upgrade..
On the PCX v3 (2014/2015) the cylinder is 149cc
On the PCX v2 (2012/2013) the cylinder is 153cc
But the Piston Pin are the same on PCX 150 v3 and PCX 150 v2
and of course it's different for the PCX v1 (only 125cc)
Sorry to contradict you but the camshaft are same between 125 and 150cc
the camshaft reference for PCX v2 2012/2013 - 125 v2 and 150 v2 is :14100-KZR-600
the camshaft reference for PCX v3 2014/2015 - 125 v3 and 150 v3 is :14100-K35-J00
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
No offence taken, I was more implying getting something like takegawa or yuminashi cam to go along with that bore. That would pep it up quite nicely..PowerbyPCX wrote:That why we say this kit is only for the PCX 125 v3Pcxdemon wrote:You can't install 150 kit on first gen Pcx, because the piston pin is 13mm where as the 150 model is 14mm in size. This is only good for esp 125 models.nribeiro wrote:That's what I'm talking about!!
And about the cost to install everything? Anyone know's? Or time...?
If I don't upgrade I think it might give a litle extra boost no?
2. You really need to upgrade the camshaft as well to get some decent gain from extra 25cc upgrade..
On the PCX v3 (2014/2015) the cylinder is 149cc
On the PCX v2 (2012/2013) the cylinder is 153cc
But the Piston Pin are the same on PCX 150 v3 and PCX 150 v2
and of course it's different for the PCX v1 (only 125cc)
Sorry to contradict you but the camshaft are same between 125 and 150cc
the camshaft reference for PCX v2 2012/2013 - 125 v2 and 150 v2 is :14100-KZR-600
the camshaft reference for PCX v3 2014/2015 - 125 v3 and 150 v3 is :14100-K35-J00
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
Sorry but I'm a bit lost here. So my pcx 125 it's the first esp I bought it in 2013 but I think it is 2012 model cause if I'm not wrong the first generation is from 2010/2011.
This kit will fit fine on mine?
This kit will fit fine on mine?
-
- Regular User
- Posts: 89
- Joined: Sun Jan 29, 2012 2:49 am
Re: Kit Cylinder 150cc Genuine for Honda PCX 125 v3 2014/201
Not not this one because this one is only for the PCX 125 v3nribeiro wrote:Sorry but I'm a bit lost here. So my pcx 125 it's the first esp I bought it in 2013 but I think it is 2012 model cause if I'm not wrong the first generation is from 2010/2011.
This kit will fit fine on mine?
We have also the kit 150 for PCX v2 for the same price:
http://www.powerbypcx.com/achat-kit-cyl ... 00040.html
and then the kit will includes:
Cylinder 153cm3 ref: 12100-KZY-700
Piston ref: 13101-KZY-700
Ring set piston ref: 13011-KZY-700
Pin Piston ref: 13111-KGF-910
2 clips piston pin ref: 13115-KZY-700
Gasket cylinder Head ref: 12251-KZY-701
Gasket cylinder ref: 12191-KZR-600
