2015 Wiring Diagram

[gallam03]

I ran a few different searches on here and Google looking for the 2015 PCX 150 wiring diagram and I'm only finding older ones. Or are the wire color codes the same on all 150's?? No idea. Anyone have access to one? Maybe I'm not searching good enough...although you'd thing wiring diagram 2015 PCX should be sufficient. Lol.
I only need it for my brake light wiring for a custom dynamics lb22 and a good accessory wire for some DRL's that I will be installing.
Current mods I have are a stiebel nautilus horn, trunk and Givi windshield.

Thanks!!!

[iceman]

It's changed - the '15's being LED and such. It will be in the service manual and like the new owners manual is not on-line, or at least outside the 'deel net' or torrent circuit.

[Jge64]

the current 2013-15 shop manual has a great wiring schematic - it's worth it...

[gallam03]

Okay thanks.

[WhiteNoise]

Just took a photo of the 2015 wiring diagram, give me a few minutes I'll try to post it here

[WhiteNoise]

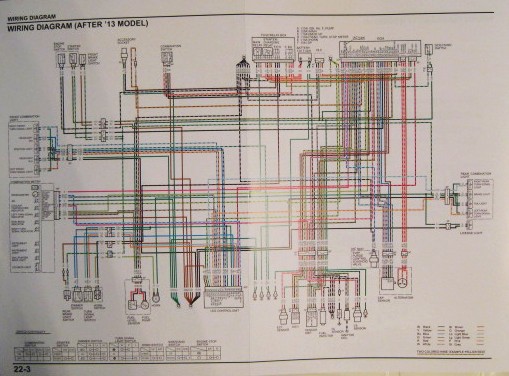

Wiring Diagram for 2014/2015 and probably the 2016 PCX 150 (from the Service Manual). If anyone wants to tool around with their scoots, you want to own a Service Manual

Sorry this is the best I could do with what I have available to me now
I'm hoping you can enlarge the photo enough to (maybe) follow it/read it.
Good luck gallam!

[gallam03]

Thanks for trying. Can't read it. Oh well.

[you you]

Thanks for trying. Can't read it. Oh well.

Looks like an ikea wallpaper

[j.d.b.]

These are a bit better. I started at the upper left and worked my way down the left half, followed by the right half, starting again at the top. I'f you download the images you may be able to reconstruct the whole thing in your photo editor.
Also, if you let me know what you're trying to find out I might be able to help look it up. This manual has, so far, been very helpful. I can email these images, too. They're fairly large files but in your editor you may be able to clean them up better and make them larger. Hope these help.

[coachz]

Can you post them as large separate images please?

[j.d.b.]

This looks to be as good as it gets. This site only allows linking. Those are uploaded to a file site and linked into here via the "img" function. I can email the full-bandwidth pix to you. PM me an email to send to.

[gallam03]

Thanks JDB !!! I should have looked here before I went to work on the scoot!! lol I sucked it up and probed my wires and found the right ones i wanted on the right side of the scoot.....Just like the diagram says. Solid green is your negative, Black is the switched constant on, and the green/yellow is the brake indicator.
I installed...well..still in the middle of installing a Custom Dynamics Knight Riderz LB22 on my top case. It looks great. Scans when riding, flashes then constant on when I use the brakes. I also installed a push button switch under the seat so if I happen to get pulled over, I can switch them off but still have the flashing brake light when I'm stopping. I'm still working on the driving lights to go on the front so I'll have it all done by tomorrow. It's been a fun project so far. I actually like doing this kind of stuff.
I am ordering a service manual also...I just didn't want to wait to get this stuff installed.

[gallam03]

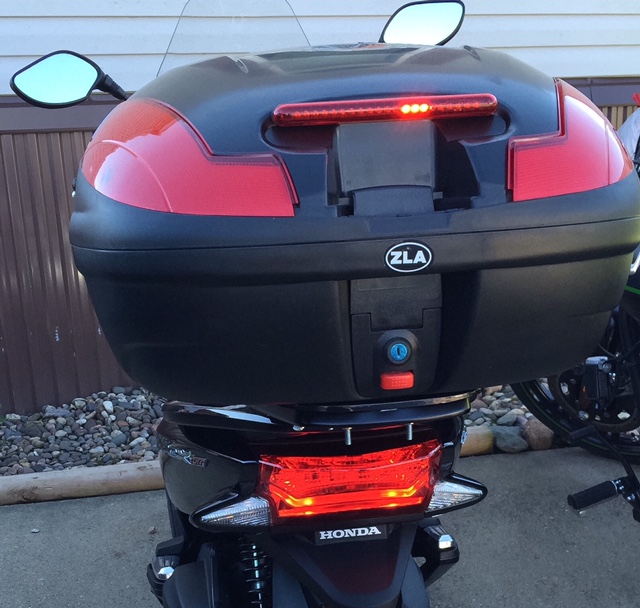

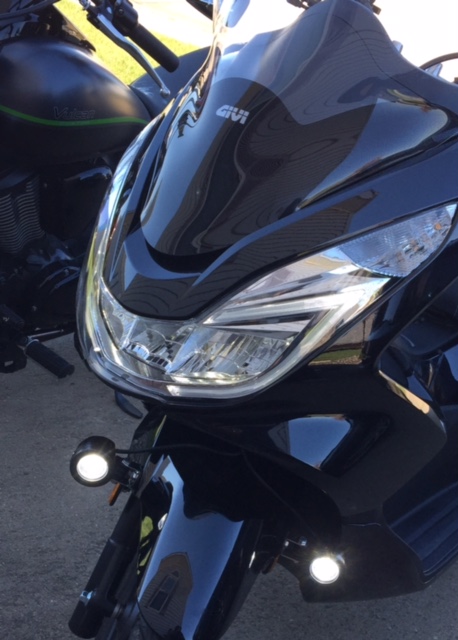

It's done. Here's the brake light, and the drl's installed.

[j.d.b.]

Does that light-bar on the deck-lid run back and forth like KITT the Trans-Am?

[gallam03]

Does that light-bar on the deck-lid run back and forth like KITT the Trans-Am?

Yes it does. Flashes then goes solid when I use the brakes. I have a switch hooked to it so I can turn of the moving lights if I ever get pulled over for it.

[nhatientri]

I am ordering a service manual also...I just didn't want to wait to get this stuff installed.

hey do you know where to buy service manual online ?

[gallam03]

I am ordering a service manual also...I just didn't want to wait to get this stuff installed.

hey do you know where to buy service manual online ?

Right here. . http://www.helminc.com/helm/product2.as ... ku=61KZY02

[iceman]

Helm is great for those in the US but charge a ridicuous amount for postage outside the US - over $120!

For those outside the US there's another site that people have used and the price is good but I believe they are not originals - http://www.service-shop-repair-manual.com/ < very good copies but copies none the less. I know this as I ordered the shop manual for my '15 PCX from the UK and got the earlier original manual and '15 amendment (there does not seem to be a single manual for sale in the UK covering the LED version - anyone know different?). So I ordered the US 150 '15 manual from the above link and it's a very good copy, but the side holes not punched through and the images just not quite as good as the originals in the proper manual - just slightly worse but very usable.

[johnnytraveler]

Wanted to add some extra led lights to my 2015 pcx. Is this possible? I wanted to run them parallel to my headlights. They are 3w.

[johnnytraveler]

[img]https://uploads.tapatalk-cdn.com/201512 ... e778fd.jpg[/img]
